Pier piling form end caps

In addition to our Series 700 seawall forms, and our pier piling sidewall forms, dee Concrete offers end caps to make the pier piling sidewall forms function more efficiently.

• Description
• Applications
• Features and benefits

End caps - description

dee has been an innovator in the manufacture of adjustable marine pier piling forms for smaller applications. In order to ensure the pier piling sidewall forms (#783) stay in place and locked firmly together, dee has created the pier piling forms end cap accessories (#784 and #785). The pier piling forms end caps are made out of strong ¼" steel to ensure the pier piling sidewall forms stay firmly in place and are forming at 90º angles.

The end caps come in custom variable widths and heights to accommodate the specified width and heights of the required pier piling side forms from 6" to a 24" piling widths and heights in increments of ¼"!

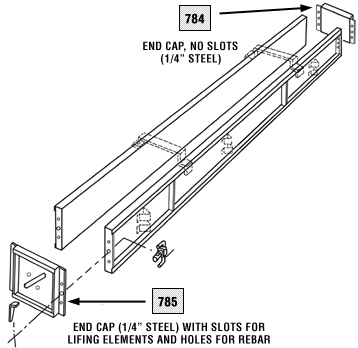

End caps (#784 and #785) Click here to view a more detailed view of our adjustable pier piling sidewall form and accessories.

Applications

dee's adjustable pier piling form end caps are designed as a custom accessory for the pier piling forms. The end caps are attached to each end of the pier piling sidewall form to create a closure for the concrete pour. Additionally, the #785 end caps form with slots is designed to accommodate various types of lifting elements to set the poured pier piling into place. This end cap is also designed with holes to provide holes for rebar placement.

Features and benefits

dee end cap accessories for our adjustable pier piling forms provide seawall contractors and marine contractors with:

• A means of ensuring sidewall pier piling forms will produce a true square or rectangular concrete piling in widths from 4" up to 24", ensuring the created pier pilings meet end-user specifications.

• A fast and easy pier piling forming and stripping solution when combined with dee adjustable pier piling sidewall forms and other needed accessories, allowing for easy movement and placement of completed pilings saving production time and increasing project profitability.

• A simple and fast method of securing the end caps to the pier piling sidewall forms using slotted connector bolts, ensuring the placed concrete does not shift or leak.

dee's top yoke spreader is designed as a custom accessory for the adjustable pier piling sidewall forms. The yoke is attached across the top of two adjacent pier piling sidewall forms to lock them into place and ensure a solid squared pour with no blowouts.

Contact dee Concrete Accessories at 1-800-245-1333, fill out our contact form, or email us at info@deeconcrete.com to discuss your individual pier piling forms and accessories needs or to identify a distributor in your area.
