Light-duty paving form specifications

Three-sixteenths inch (3/16") paving forms are offered in heights from 4" to 24" with base widths up to 24".

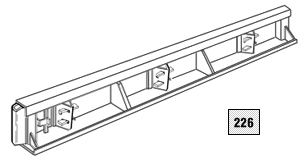

Light duty paving form - illustration

All 3/16" paving forms are manufactured with a full height sliding nose, 2 full height pockets, and double wedges for complete contact with the stake, full and half-end gussets and 1/4" end angles.

All 3/16" paving forms can be manufactured with optional holes for keyway or holes for dowels.

3/16" Standard Paving Form Availability

Form
Height 		Paving Form Base Width
4" 5" 6" 7" 8" 10" 12" 14" 16" 18" 20" 22" 24"
4" X X X X X X X X X X X X X
6" X X X X X X X X X X X X X
7" X X X X X X X X X X X X X
8" X X X X X X X X X X X X X
9" X X X X X X X X X X X X X
10" X X X X X X X X X X X X X
12" X X X X X X X X X X X X X
14" X X X X X X X X X X X X X
16" X X X X X X X X X X X X X
18" X X X X X X X X X X X X X
20" X X X X X X X X X X X X X
22" X X X X X X X X X X X X X
24" X X X X X X X X X X X X X

X = Available standard height and width combination

3/16" Standard Paving Form Weight Specs

Form
Height 		Paving Form Base Width
4" 5" 6" 7" 8" 10" 12" 14" 16" 18" 20" 22" 24"
4" 84 95 105 116 126 140 154 168 184 200 216 233 251
6" 105 116 126 133 140 154 168 184 200 216 233 251 269
7" 116 126 133 140 147 161 176 192 208 216 242 260 279
8" 126 133 140 147 154 168 184 200 216 233 251 269 289
9" 133 140 147 154 161 176 192 208 224 242 260 279 299
10" 140 147 154 161 168 184 200 216 233 251 269 289 310
12" 154 161 168 176 184 200 216 233 251 269 289 310 332
14" 168 176 184 192 200 216 233 251 269 289 310 332 346
16" 184 192 200 208 216 233 251 269 289 310 332 346 364
18" 200 208 216 224 233 251 269 289 310 332 346 364 382
20" 216 224 233 242 251 269 289 310 332 346 364 382 400
22" 233 242 251 269 269 289 310 332 346 364 382 400 419
24" 251 260 269 279 289 310 332 346 364 382 400 419 437

Three-sixteenths inch (3/16") paving forms can be manufactured as custom forms in any combination of sizes to meet your individual road paving project requirements.

Contact dee Concrete Accessories at 1-800-245-1333, fill out our contact form, or email us at info@deeconcrete.com to discuss your individual paving form needs or to identify a paving form distributor in your area.
