Heavy-duty paving form specifications

Quarter-inch (1/4") paving forms are offered in heights from 6" to 24" with base widths up to 24".

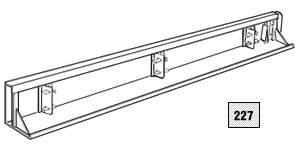

Heavy-duty paving form - illustration

All 1/4" paving forms are manufactured with a full height sliding nose, three (3) full height pockets, and double wedges for complete contact with the stake.

1/4" Standard Paving Form Availability

Form
Height 		Paving Form Base Width
4" 5" 6" 7" 8" 10" 12" 14" 16" 17" 18" 20" 22" 24"
6" X X X X X X X X X X X X X X
7" X X X X X X X X X X X X X X
8" X X X X X X X X X X X X X X
9" X X X X X X X X X X X X X X
10" X X X X X X X X X X X X X X
12" X X X X X X X X X X X X X X
14" X X X X X X X X X X X X X X
16" X X X X X X X X X X X X X X
18" X X X X X X X X X X X X X X
20" X X X X X X X X X X X X X X
22" X X X X X X X X X X X X X X
24" X X X X X X X X X X X X X X

X = Available standard height and width combination

1/4" Standard Paving Form Weight Specs

Form
Height 		Paving Form Base Width
4" 5" 6" 7" 8" 10" 12" 14" 16" 17" 18" 20" 22" 24"
6" 120 132 144 156 170 186 204 222 240 249 259 279 299 321
7" 132 144 156 170 178 195 213 231 249 259 269 289 310 332
8" 144 156 170 178 186 204 222 240 259 269 279 299 321 343
9" 156 170 178 186 195 213 231 249 259 279 289 310 332 343
10" 170 147 186 195 204 222 240 259 279 289 299 321 343 365
12" 186 161 204 213 222 240 259 279 299 310 321 343 365 390
14" 204 176 222 231 240 259 279 289 299 321 343 365 390 410
16" 222 192 240 249 259 279 299 321 343 354 365 390 410 432
18" 240 208 259 269 279 299 321 343 365 377 390 410 432 454
20" 259 224 279 289 299 321 343 365 377 390 410 432 454 475
22" 279 242 299 310 321 343 365 390 410 421 432 454 475 497
24" 299 260 321 332 343 365 390 410 432 443 454 475 497 518

Quarter-inch (1/4") paving forms can be manufactured as custom forms in any combination of sizes to meet your individual road paving project requirements.

Contact dee Concrete Accessories at 1-800-245-1333, fill out our contact form, or email us at info@deeconcrete.com to discuss your individual paving form needs or to identify a paving form distributor in your area.
