Hook braces and stake braces

Bracings are heavy metal channels, angled to hold forms in place where there is a concern the weight of the concrete will move forms out of position due to unstable ground conditions thereby preventing a blowout for any flatwork applications.

• Description
• Standard hook braces
• Adjustable hook braces
• Stake braces
• Applications
• Features and benefits

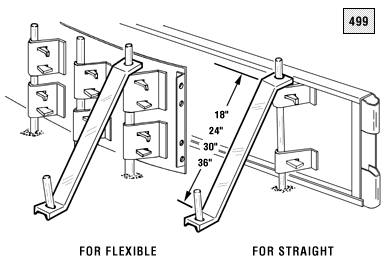

Standard and adjustable braces - description

dee produces two types of form braces, standard and adjustable, in four sizes including 18", 24", 30", and 36". The braces are made from heavy-duty steel channel 1-1/2" wide. The ends of each brace have a 1" hole punched into them used to either slip over the round nail stake that anchors the form, or to receive a stake used to anchor the end of the brace to the ground

Standard hook braces

Length Standard Package Package Weight 18" 10 25 lbs 24" 10 32 lbs 30" 10 40 lbs 36" 10 48 lbs

Adjustable hook braces

Length Standard Package Package Weight 18" 10 32 lbs 24" 10 40 lbs 30" 10 48 lbs 36" 10 55 lbs

Standard and adjustable braces serve the same function, providing additional support for the forms used in concrete placement. The only difference is the adjustable brace has a turnbuckle incorporated into the brace allowing tension to be easily adjusted.

Stake braces

Applications

Typical applications for bracing include forming for placements of concrete for sidewalks, driveways, patios, curb & gutter systems, and slabs.

Features and benefits

dee bracing:

• Provides extra stability strength to the wood or metal forms through additional anchoring, thereby preventing form movement problems during concrete placement.

• Provides forming versatility by allowing the use of a combination of components for specific common repetitive applications.

• Save time and money. Having the right concrete accessories makes any job go smoother.

Contact dee Concrete Accessories at 1-800-245-1333, fill out our contact form, or email us at info@deeconcrete.com to discuss your individual bracing needs or to identify a distributor in your area.
