Division plates

Division plates for curb and gutter work are available in four types, full division plates, skeleton division plates, division plates slotted for rebar, and division plates for existing pavement. dee division plates are fabricated to meet any specification.

• Types of division plates
• Applications
• Features and benefits

Types of division plates

To view an illustration and short description of dee's division plates, please select one of the links below:

Division plates for sidewalks

dee's division plates for sidewalk (#320)are used as bulkheads and to secure expansion joint material during concrete sidewalk placements.

The division plate slips on to each of the top rails of the sidewalk form. They are generally used as spacers while setting sidewalk forms up and as full breaks where expansion material is required.

dee makes sidewalk division plates in full depth and any width and height desired.

The flexible sidewalk form division plate (#322) slips over the top of the edge form and is used as a spacer while setting radius sidewalk runs. They act as bulkheads and as full breaks where expansion material is required.

The use of sidewalk division plates as spacers speeds the setting of parallel runs resulting in reduced labor and increased contractor profitability. Using division plates for flexible sidewalk eliminates the need for contractors to saw cut expansion joints into the pavement after placement saving project time.

Division plates for existing pavements

Division plates for existing pavement are used when existing pavement will not be removed and forms a support for the division plates in the new curb & gutter pour. They are often attached to the existing pavement using a flat clip that extends over and can be anchored to the existing pavement.

The use of division plates for existing pavement helps a contractor to speed up rehab work without disturbing the existing roadway since there is no need to saw cut the pavement for expansion joints.

Division plates for rebar slots

Division plates with slots for rebar offer the contractor real benefits. These division plates provide the contractor with the ability to ensure the rebar will stay exactly where it is positioned into a curb & gutter placement eliminating problems with the final rebar positioning. Rebar that is manually placed often floats in the concrete mixture and move before curing.

dee will fabricate division plates with slots for rebar to meet any specification.

Division plates for straight step-type curb & gutter forms

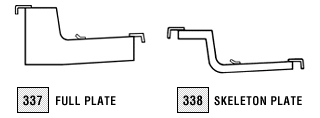

Full division plates (#337) are typically used as bulkheads at the ends of a curb & gutter setup and when a full depth break or expansion joint in the concrete is required. A division plate is required at the end of each curbface form for support. Typically, division plates are used evenly every 10 feet in a curb and gutter setup.

Skeleton division plates (#338) do not provide full penetration and are frequently used when a bulkhead is not required, a full expansion joint is not required, or when continuous rebar is specified for the curb & gutter job saving the contractor money. Skeleton division plates may be substituted for full division plates on a one for one replacement

Division plates for use with flexible, step-type curb and gutter forms

Full division plates for flexible curb & gutter (#339) are typically used as bulkheads at the ends of a curb & gutter setup and when a full depth break or expansion joint is required. Additional skeleton division plates are required to support the flexible curb face at ~20" intervals when using a flexible curbface form.

Each division plate is equipped with clips that slip over the back and front flexible forms and a top rotating latch that locks in the flexible curbface form.

Skeleton division plates for flexible curb & gutter (#340) are used to support a flexible curbface form at ~20" intervals. Skeleton division plates do not provide full penetration. Skeleton division plates are equipped with clips that slip over the back and front flexible forms and a top rotating latch that locks in the flexible curbface form.

Division plates for straight, drive over-type curb and gutter forms

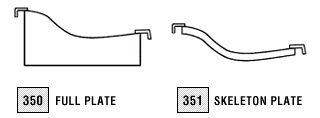

Full division plates (#350) are typically used as bulkheads at the ends of a curb & gutter setup and when a full depth break or expansion joint in the concrete is required. A division plate is required at the end of each curbface form for support. Typically, division plates are used evenly every 10 feet in a curb and gutter setup.

Skeleton division plates (#351) do not provide full penetration and are frequently used when a bulkhead is not required, a full expansion joint is not required, or when continuous rebar is specified for the curb & gutter job saving the contractor money. Skeleton division plates may be substituted for full division plates on a one for one replacement

Division plates for flexible, roll-type curb & gutter forms (full and skeleton)

Full division plates for roll type radius curb & gutter (#352) are typically used as bulkheads at the end of the curb & gutter setup and when a full depth break or expansion joint is required.

No curbface form is used when forming a roll type curb and gutter but the division plates serve as a template to strike off the desired profile.

Skeleton division plates (#353) do not provide full penetration and are frequently used when a bulkhead is not required, a full expansion joint is not required, or when continuous rebar is specified. Skeleton division plates may be substituted for full division plates on a one to one replacement.

Division plates for straight, high curb forming - full

Half division plates do not provide full penetration and are frequently used when a bulkhead is not required, a full expansion joint is not required, or when continuous rebar is specified for the curb job saving the contractor money. Half division plates may be substituted for full division plates on a one for one replacement.

Division plates for straight, high curb forming - half

Full division plates are typically used as bulkheads at the ends of a curb setup and when a full depth break or expansion joint in the concrete is required. A division plate is required at the end of each curbface form for support. Typically, division plates are used evenly every 10 feet in a curb setup.

Division plates for flexible, high curb forming - full

Half division plates do not provide full penetration and are frequently used when a bulkhead is not required, a full expansion joint is not required, or when continuous rebar is specified for the curb job saving the contractor money. Half division plates may be substituted for full division plates on a one for one replacement.

Division plates for flexible, high curb forming - half

Full division plates are typically used as bulkheads at the ends of a curb setup and when a full depth break or expansion joint in the concrete is required. A division plate is required at the end of each curbface form for support. Typically, division plates are used evenly every 10 feet in a curb setup.

Applications

Using division plates helps prevent pavement cracking when the ground settles or shifts due to the changes caused by heat and cold.

Features and benefits

• The use of sidewalk division plates as spacers speeds the setting of parallel runs resulting in reduced labor and increased contractor profitability.

• Using division plates for sidewalk eliminates the need for contractors to saw cut expansion joints into the pavement after placement saving project time.

Contact dee Concrete Accessories at 1-800-245-1333, fill out our contact form, or email us at info@deeconcrete.com to discuss your individual division needs or to identify a distributor in your area.
