Corner forms and corner form locks

Inside corner forms and outside corner forms are used with our standard flatwork forms to complete nicely finished corners. Our 90° angle pieces are 24" in length for each section of the angle, and are made from 12-gauge steel on 4" to 7-1/2" form heights and from 10-gauge steel on corner forms from 8" to 24" tall.

• Drop-on filler corner forms
• Standard corner forms
• Corner form locks
• Applications
• Features and benefits

Drop-on filler corner forms

With 24" x 24" legs

dee drop-on filler corner forms have a top rail with ~2 1/8" inside dimension and no bottom rail. This design allows the corner forms to easily slip over the 2" top rail of the straight flatwork forms that are being connected to make precise inside or outside corners.

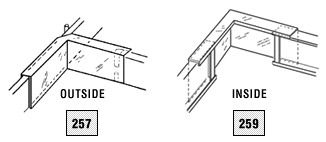

Standard corner forms

With 18" x 18" legs with stake pockets

dee standard corner forms have 2" top and bottom rails, 18î legs, and welded stake pockets. These 90° corners are available in heights from 4" to 24" and are designed to mate with the nose end of a dee straight form.

Corner form locks

Connect with slotted bolts and wedges

Corner locks are heavy-duty metal straps designed to tightly lock the joint when two forms are lapped to form a 90° corner. The corner lock is attached to the forms with standard slotted bolts and wedges ensuring tight corners through both concrete placement and subsequent vibration.

Applications

Corner forms are used for sidewalk ends, patio corners, building slab corners, or for any flatwork application requiring nicely finished corners.

Features and benefits

dee corner forms:

• Allow contractors and their crews to quickly set up to form concrete placements that require square corners without measuring, cutting, and nailing wood into place, saving time and wood waste removal time and costs.

• Can be used to fill in less than 2' lengths in odd-shaped pours such as a 21' x 20' slab by using the corner form to make up the extra 1 foot required providing the contractor with flexibility and ease of job handling.

• Ensure finished corners are always square, 90° corners, with no deformation providing a quality job every time while saving the time required to build wood forming.

dee corner form locks:

• Provides contractors with a quick and easy means of locking forms together to provide stable corners at a minimal cost while eliminating costly blowouts.

Contact dee Concrete Accessories at 1-800-245-1333, fill out our contact form, or email us at info@deeconcrete.com to discuss your individual corner form needs or to identify a distributor in your area.
